5.5 KW Wire Pressing Machine with Winding Roller For Metallic Wire from 10mm to 1 mm - YLJ-1220-W
  • 5.5 KW Wire Pressing Machine with Winding Roller For Metallic Wire from 10mm to 1 mm - YLJ-1220-W
  • 5.5 KW Wire Pressing Machine with Winding Roller For Metallic Wire from 10mm to 1 mm - YLJ-1220-W
  • 5.5 KW Wire Pressing Machine with Winding Roller For Metallic Wire from 10mm to 1 mm - YLJ-1220-W
  • 5.5 KW Wire Pressing Machine with Winding Roller For Metallic Wire from 10mm to 1 mm - YLJ-1220-W
  • 5.5 KW Wire Pressing Machine with Winding Roller For Metallic Wire from 10mm to 1 mm - YLJ-1220-W
  • 5.5 KW Wire Pressing Machine with Winding Roller For Metallic Wire from 10mm to 1 mm - YLJ-1220-W
5.5 KW Wire Pressing Machine with Winding Roller For Metallic Wire from 10mm to 1 mm - YLJ-1220-W

5.5 KW Wire Pressing Machine with Winding Roller For Metallic Wire from 10mm to 1 mm - YLJ-1220-W

SKU: ylj-1220-w

Price: RFQ

Specifications

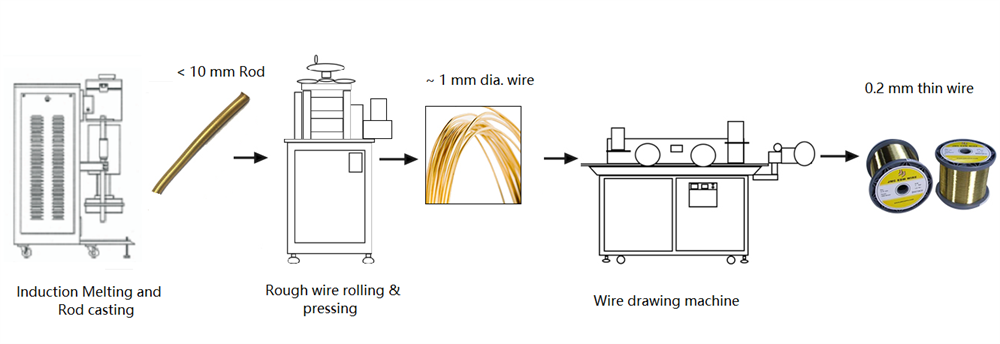

 MSK-1220-W is a heavy-duty electric rolling press with 5.5 KW, which is designed for rolling metallic wire from ≤ 10 mm rod or bulk (< RC 50) to 1 mm diameter, such as Aluminium alloy, Copper, Nickel alloy and stainless steel, etc. This device is one of necessary for wire preparation of metallic wire for AM ( Click here to see details) SPECIFICATIONS: Power 208- 240V Three Phase, 50/60Hz 5.5 KW AC motor (7.5 horsepower) 380VAC, three-phase is available upon request AC Motor Rollers The rollers surface consists of a series of grooves with a diameter of 10 mm to 1 mm, which will press a large rod into a thin wire via one by one pressing The automatic winding roller is build Roller materials: Hardening DC53 Roller size: 120 mm dia x 200 mm width (~4.7" Dia x 8" width) Hardness: HRC 63-65 Rolling thickness: 1 - 11 mm adjustable Rolling Speed 0 - 6 mm / second adjustable by 22 segments Compliance CE Certified NRTL certification is available upon request at an extra cost Application Note Never roll materials with hardness > 50HRC The thickness for each time pressing is dependent on material thickness. Harder material shall be less press thickness, which customer shall test by themselves for the best parameters For some material, you may need to anneal it by furnace after each rolling to avoid work hardening

Power
  • 208- 240V Three Phase, 50/60Hz
  • 5.5 KW AC motor (7.5 horsepower)
  • 380VAC, three-phase is available upon request
  • AC Motor

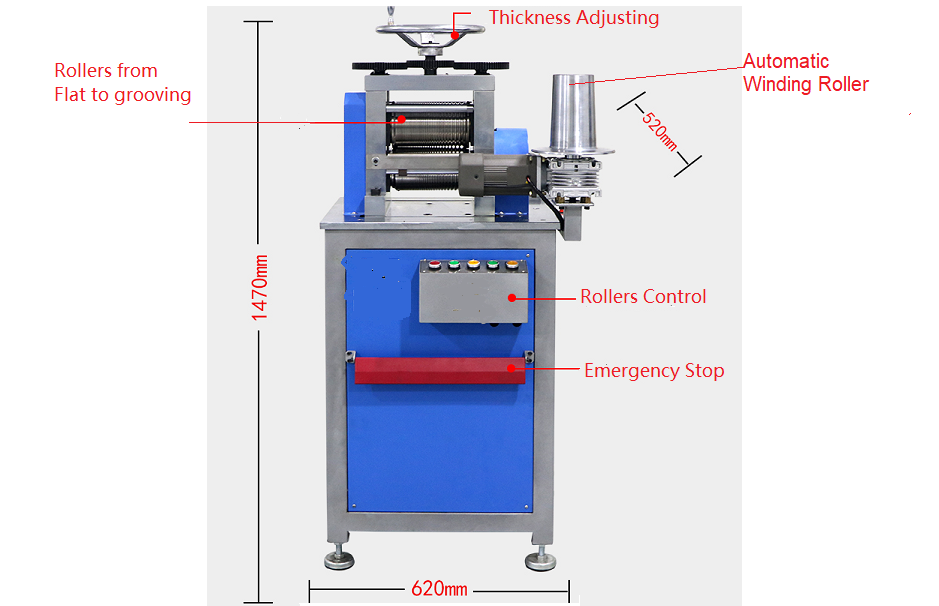

Rollers

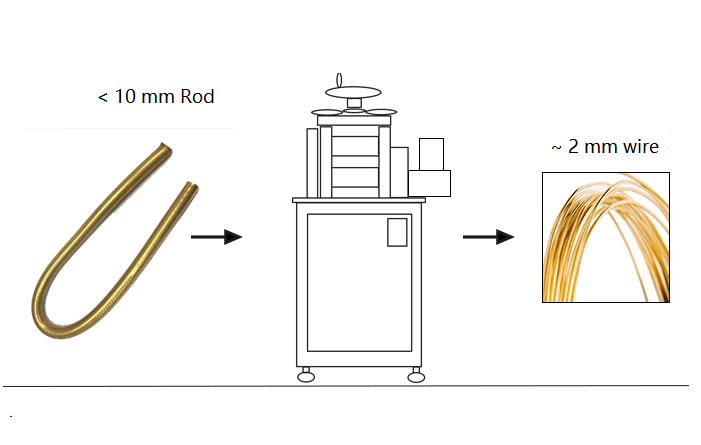

  • The rollers surface consists of a series of grooves with a diameter of 10 mm to 1 mm, which will press a large rod into a thin wire via one by one pressing
  • The automatic winding roller is build
  • Roller materials: Hardening DC53
  • Roller size: 120 mm dia x 200 mm width (~4.7" Dia x 8" width)
  • Hardness: HRC 63-65
  • Rolling thickness: 1 - 11 mm adjustable
Rolling Speed
  • 0 - 6 mm / second adjustable by 22 segments
Compliance
  • CE Certified
  • NRTL certification is available upon request at an extra cost
Application Note
  • Never roll materials with hardness > 50HRC
  • The thickness for each time pressing is dependent on material thickness. Harder material shall be less press thickness, which customer shall test by themselves for the best parameters
  • For some material, you may need to anneal it by furnace after each rolling to avoid work hardening
