Advanced Planetary Ball Mill w/ Independent Speed Control and Optional Milling Jars up to 2L - MSK-SFM-15

Features

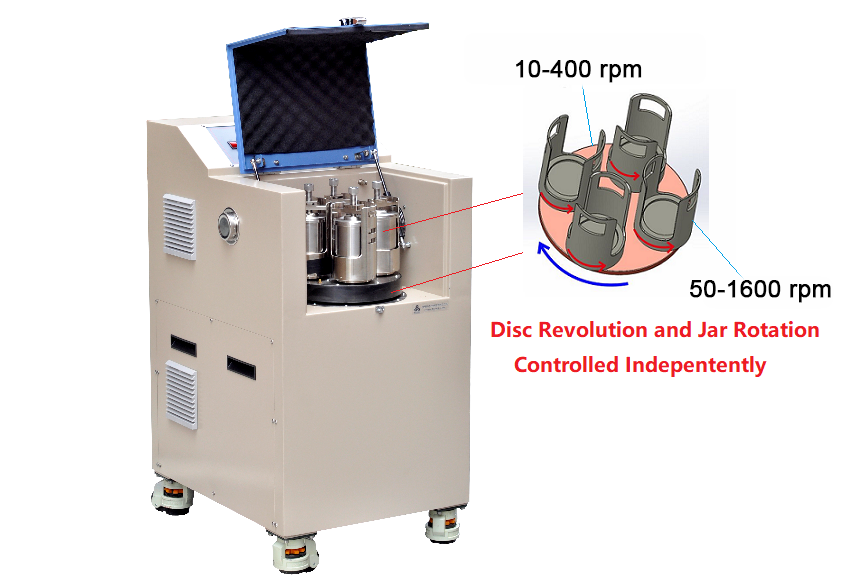

• Independent speed control for revolution (10 - 400 RPM) and self-rotation (50 -1600 RPM)
• Touch screen control panel for programmable milling recipes.
• Four 500 mL stainless steel jars are included

Power

• 208 - 240V AC,1p, 50/60 Hz
• 3500 W
• 10-ft power cord without a power plug.

Milling Speed and centrifugal acceleration

• Main revolution: 10 - 400 RPM; Centrifugal acceleration: <16 g
• Self-rotation: 50 - 1600 RPM; Centrifugal acceleration: <120g
• Total Centrifugal acceleration: <136 g
• Recommended speed ratio: 1 - 3
• Maximum milling allowance for the wet mill (Total weight of samples and milling media):
• <2000 g @ revolution < 350 rpm
• <1000 g @ revolution < 400 rpm
• The total load for the dry mill is half of the wet mill.

Touch Screen Control

• Programmable milling process including milling time and milling speed.
• 10 recipes
• 8 segments of speed control per recipe

Recommended Material Size

• Intake size: < 3 mm for most materials;
  < 10 mm for brittle materials
• Output: < 1um average @ wet mill;
  < 20um @ dry mill

Milling Jars

• Four 500 ml stainless steel jars with SS milling ball combo are included.
• Other milling jars and milling media are also available.
• Hi-throughput milling tanks ( 8 x25 ml jars) are available upon request, which can mill 32 samples per batch.

Noise Level

55~85 decibel

Locking Fixtures

• Four sets of locking fixtures are included
• Easy to tight for max. jar securing. Can hold jars with heights up to 80mm

Compliance

• CE Certified
• NRTL certification is available at an extra cost

Application Notes

• SS304 mixing jar is suitable for grinding various metal materials.
• To avoid contamination, please pre-milling the material 2-3 times before normally milling, which can make a coating on the surface of the jar and balls. Please use one jar for one type of material.
• For milling the oxide material, please choose alumina/Nylon jars and zirconia media. DO NOT USE stainless steel balls in Alumina jars.
• Must place 4 jars or 2 in symmetrical with similar weights in the ball mill to keep balance during rotation, If using one jar, you must put another jar with the same weight in a symmetrical position. Otherwise, unbalanced rotation, especially one jar, may damage the machine.
• Please click underline to learn Centrifugal Force calculation.
