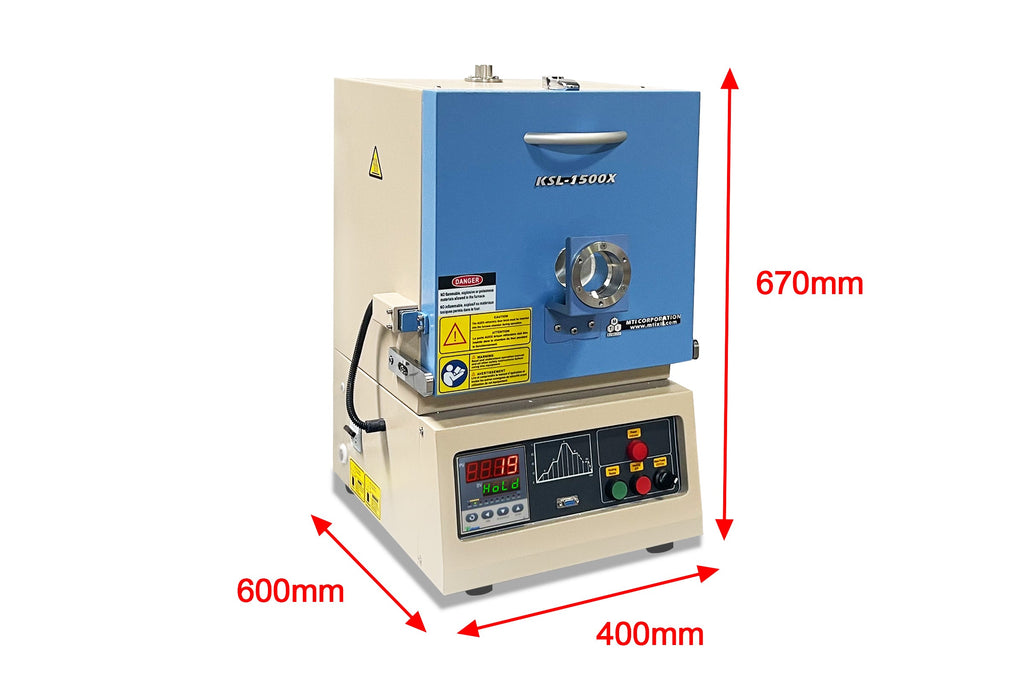

1500°C Hybrid Furnace (1.7L Box & 2" Mullite Tube) with Programmable Controller - KSL-1500X-S-H
  • 1500°C Hybrid Furnace (1.7L Box & 2" Mullite Tube) with Programmable Controller - KSL-1500X-S-H
  • 1500°C Hybrid Furnace (1.7L Box & 2" Mullite Tube) with Programmable Controller - KSL-1500X-S-H
  • 1500°C Hybrid Furnace (1.7L Box & 2" Mullite Tube) with Programmable Controller - KSL-1500X-S-H
  • 1500°C Hybrid Furnace (1.7L Box & 2" Mullite Tube) with Programmable Controller - KSL-1500X-S-H
  • 1500°C Hybrid Furnace (1.7L Box & 2" Mullite Tube) with Programmable Controller - KSL-1500X-S-H
1500°C Hybrid Furnace (1.7L Box & 2" Mullite Tube) with Programmable Controller - KSL-1500X-S-H

1500°C Hybrid Furnace (1.7L Box & 2" Mullite Tube) with Programmable Controller - KSL-1500X-S-H

SKU: ksl-1500x-s-h

Price: RFQ

Specifications

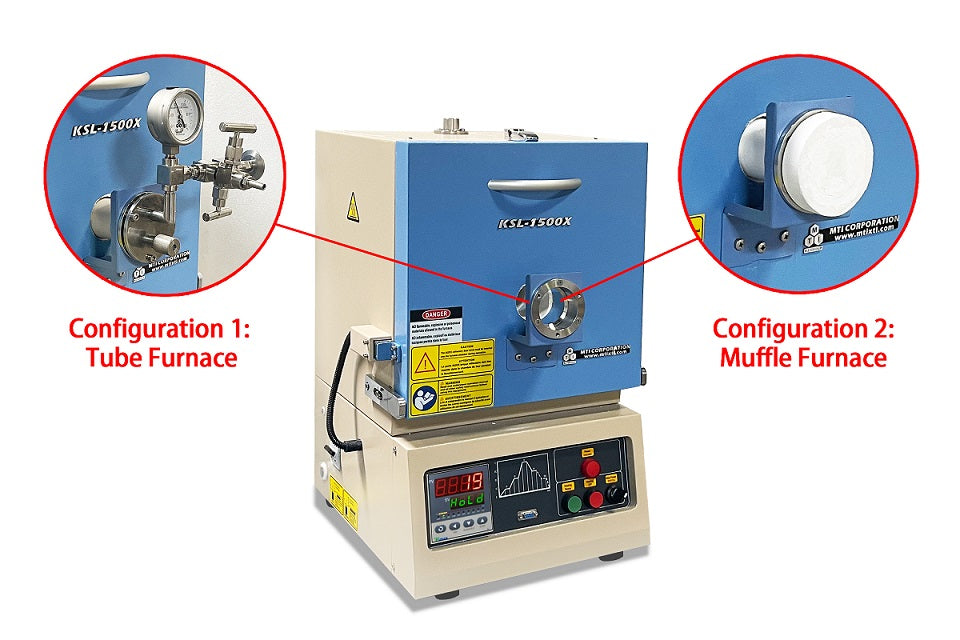

 KSL-1500X-S-H is a1500ºC high-temperature hybrid furnace that can be used as a 1.7L ( 12x12x12cm ) muffle furnace and a 2" tube furnace. It is a cost-effective and space-saving solution for material processing labs. SPECIFICATIONS: Furnace Structure The design of the drop-down door is for loading samples easy. The gas inlet and venting port are installed for use in oxygen or inert gas-enriched atmospheres. One 2" hole is opened in the front of the door to insert a 2" mullite tube when use as a vacuum tube furnace Power AC 208V-240V single phase, 50/60 Hz ( 20A air breaker required) 2.5KW Note Power cable included but without the plug. Please install a plug on your own or click the picture left to choose a plug according to your country or your lab requirement Heating Chamber Heating Elements: SiC (4 pcs U shape) Chamber size: 120 x 120 x120 mm Working Temperature: 1400ºC ( Continuous ), and 1500ºC (< 60 minutes) Heating Rate: 0 ~20°C / min (suggestion =< 10°C) Thermal block: 2" thermal block made of fibrous alumian is included in the front door Processing Tube One mullite tube ( one end closed) is included with a dimension of 2'' O.Dx1.75''I.Dx12''L. One set of vacuum flange with valves of gas inlet and outlet, KF25 vacuum port, and mechanical vacuum gauge Mx. vacuum 10-2 torr by mechanical pump, and 10-5 torr by turbo-pump Temperature Controller Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm Thermal couple: S type +/- 1 ºC temperature control accuracy Default DB9 PC communication port Laptop & software (Optional) Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use. Labview-Based Temperature Control System ( MTS01 ) enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces. A wireless remote control provides up to 200 meters of operating range. Compliance CE Certified The furnace is ready to pass TUV(UL61010) or CSA certification at an extra cost. Attention Notes For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10 °C /min. The cooling rate shall also not exceed 10 °C /min. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating . Performance degradation (i.e. furnace can not reach the maximum temperature of 1500°C or it is drawing a higher than normal working current) can be expected due to the use of aged SiC heating elements. It is necessary to replace all the heating elements.

Furnace Structure
  • The design of the drop-down door is for loading samples easy.
  • The gas inlet and venting port are installed for use in oxygen or inert gas-enriched atmospheres.
  • One 2" hole is opened in the front of the door to insert a 2" mullite tube when use as a vacuum tube furnace
Power
  • AC 208V-240V single phase, 50/60 Hz ( 20A air breaker required)
  • 2.5KW
  • Note Power cable included but without the plug. Please install a plug on your own or click the picture left to choose a plug according to your country or your lab requirement
Heating Chamber
  • Heating Elements: SiC (4 pcs U shape)

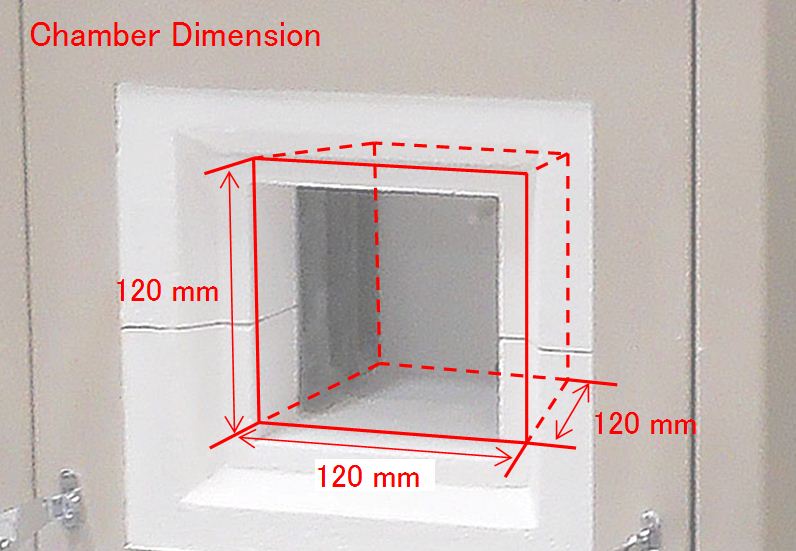

  • Chamber size: 120 x 120 x120 mm
  • Working Temperature: 1400ºC ( Continuous ), and 1500ºC (< 60 minutes)
  • Heating Rate: 0 ~20°C / min (suggestion =< 10°C)

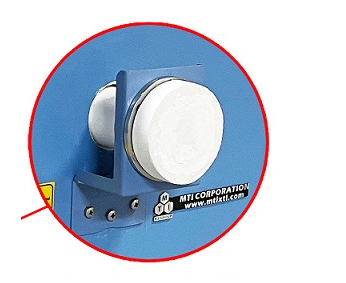

  • Thermal block: 2" thermal block made of fibrous alumian is included in the front door
Processing Tube
  • One mullite tube ( one end closed) is included with a dimension of 2'' O.Dx1.75''I.Dx12''L.

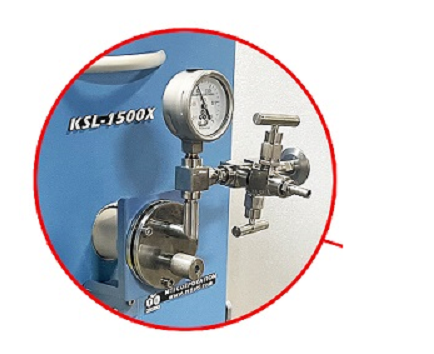

  • One set of vacuum flange with valves of gas inlet and outlet, KF25 vacuum port, and mechanical vacuum gauge
  • Mx. vacuum 10-2 torr by mechanical pump, and 10-5 torr by turbo-pump
Temperature Controller
Laptop & software (Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview-Based Temperature Control System (MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
  • A wireless remote control provides up to 200 meters of operating range.
Compliance
  • CE Certified
  • The furnace is ready to pass TUV(UL61010) or CSA certification at an extra cost.
Attention Notes
  • For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10 °C /min. The cooling rate shall also not exceed 10 °C /min.
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
  • Performance degradation (i.e. furnace can not reach the maximum temperature of 1500°C or it is drawing a higher than normal working current) can be expected due to the use of aged SiC heating elements. It is necessary to replace all the heating elements.
