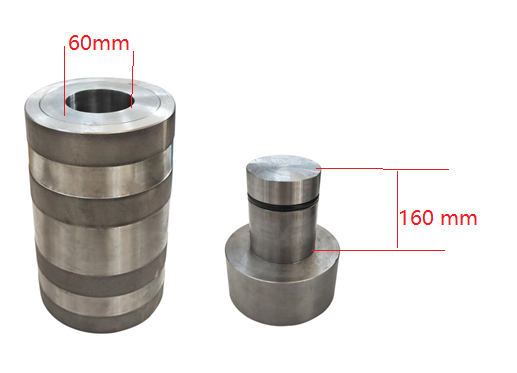

 CIP60-DIE is a Complete CIP Die Set (Max. 300 MPa Vessel) for 85Tons Cold Isostatic Press, which has a 60mm ID x 160mm depth chamber up to 300 MPa. It is an excellent tool for preparing 2“ ceramic sample with a much high density.

Hydraulic cylinder pressure 0 - 85 T
(100 T hydraulic press is required)
CIP Vessel size
  • 60 I.D. x 160D. mm (Effective Depth ~80mm)
  • Die total height is 340 mm with the top pushing rod
  • 330 ml hydraulic oil required - ~ 40mm to top
Vessel Pressure
  • 0 - 300 MPa
  • Warning: sealing rubber O-ring is consumable, and need replacing as the suggest as the table below
  • 10 pcs sealing O-rings are included for replacement. Spare O-ring is available upon request
Gauge Displayed Pressure Value (Mpa) Recommended Max and a short time
Actual Force Applied on the Hydraulic Cylinder (Ton)  56.5  72  84.7
CIP Die Pressure (MPa) vs 6 CM ID Vessel  200  255  300
O-Ring life for replacement > 10 time  10 times  3 times







Application Notes
  • You may use the liquid rubber to seal the sample to be CIP ( click Pic.1 to order).  Check this link to understand liquid rubber for sample preparation.
  • You may use a small vacuum sealer to seal the sample before CIP inside a glovebox to avoid air contamination ( Click Pic. 2 to order)
  • You may use the machine as a dry pressing to order pressing die (click Pic below right)
  • Pic. 1  Pic. 2 Pic. 3
Warning
  • Never let the press hold the target pressure be longer than 8 minutes
  • It's normal that the target pressure decreases a little bit during the pressure holding time, so never press the red nor the green button in this period
  • Pressure must be completely released first, then make sure the handwheel and the pressure release valve has been tightened before pressing
,
Gauge Displayed Pressure Value (Mpa) Recommended Max and a short time
Actual Force Applied on the Hydraulic Cylinder (Ton)  56.5  72  84.7
CIP Die Pressure (MPa) vs 6 CM ID Vessel  200  255  300
O-Ring life for replacement > 10 time  10 times  3 times
,

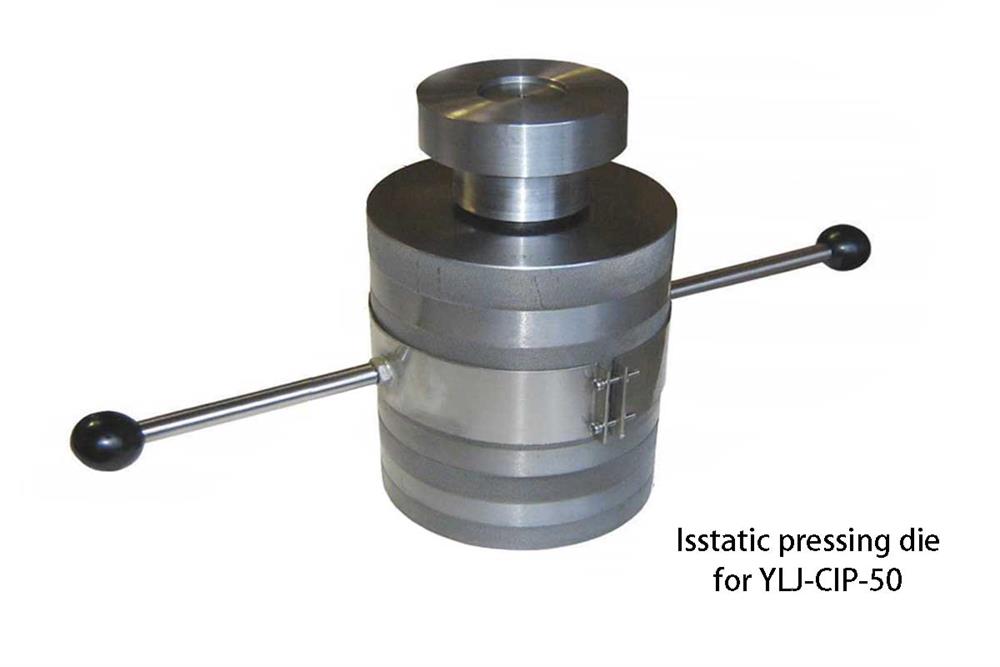

Die Sleeve, Upper Die Core
and two handles
 Die Cavity (60mm I.D)
filled with hydraulic oil

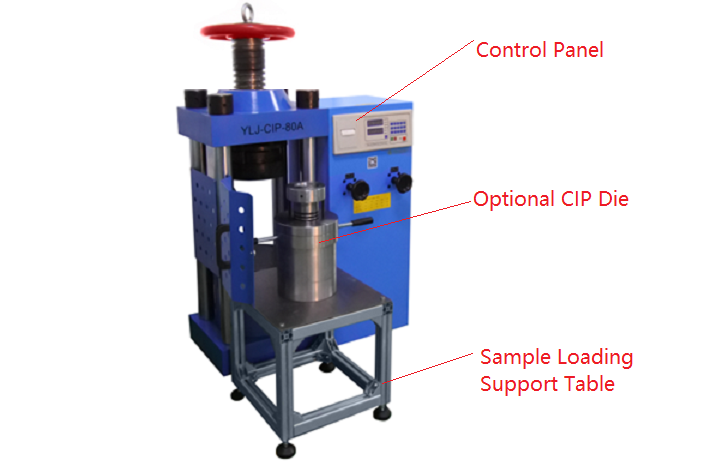

100 T Electric Hydraulic Press
,
Name Qty
1 CIP pressing die 1 set
2 Black Rubber Rings O.D 60 mm  10 pc
3 Holding bar (for carrying the CIP pressing die) 2 pc
4 Pressing oil 1 bottle
5 Hex-socket wrench (for top pressing die and degassing) 1 pc
