Alumina Testing Fixture for Thermoelectric & Ferroelectric Ceramics - ATF-2718
  • Alumina Testing Fixture for Thermoelectric & Ferroelectric Ceramics - ATF-2718
Alumina Testing Fixture for Thermoelectric & Ferroelectric Ceramics - ATF-2718

Alumina Testing Fixture for Thermoelectric & Ferroelectric Ceramics - ATF-2718

SKU: atf-2718

Price: RFQ

Specifications

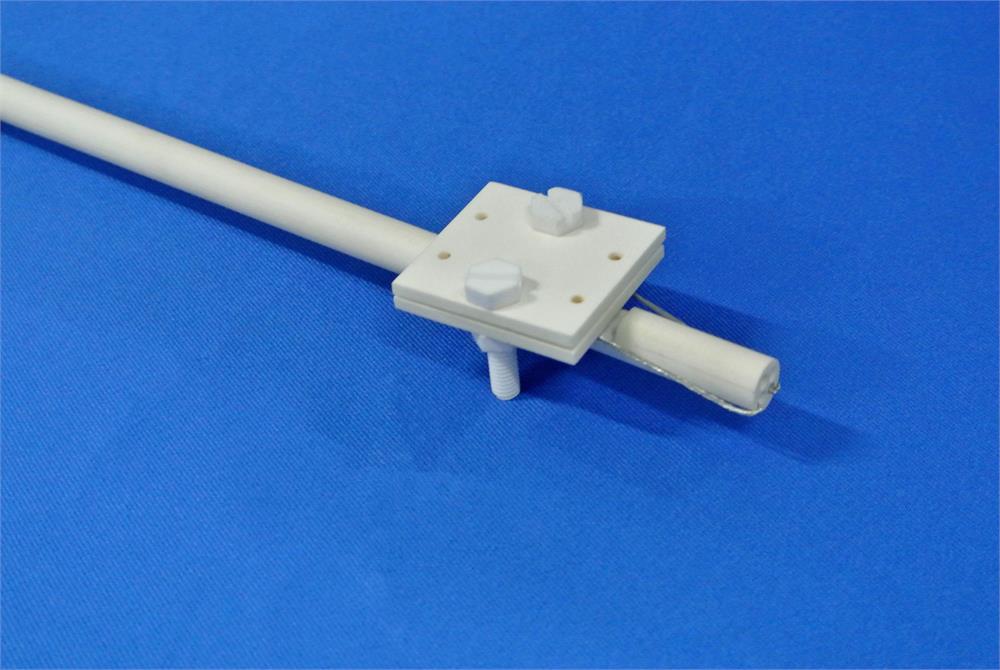

 This is a set of high purity alumina fixture assembly for thermoelectric & ferroelectric ceramic materials testing under various temperature & pressure conditions. It is suitable for the use with MTI Tube furnaces such as General quartz/alumina tube furnaces: OTF-1200X, OTF-1500X, GSL-1600/1700/1800X series Specialised sliding tube furnaces: OTF-1200X-S-HPCVD, OTF-1200X-80SL-UL ... High-pressure Ni-based superalloy/SS tube furnaces: OTF-1200X-HVHP series, OTF-1200X-80-HPV-III Components in standard package One four-bore tube support allows electrical wires to pass through and connect the testing sample. Top & bottom pressing plates ensure proper metal contacts between the sample and electrical wires. Ceramic tightening screw&nuts for holding the two plates together. Note: Electrical wires will not be included in the sale. Purity > 99.8% Working Temperature Optional: 1200°C 1500°C 1700 °C max. Dimensions Sample Placement Area: 27mm W x18mm L Max. Ceramic Pressing Plate: 40mm W x 36mm L x 3mm Thick Ceramic Supporting Rod: 10mm O.D x 500mm L; 4 bores, 3mm I.D Ceramic Screw length: around 25 mm. Instruction Video Related Article Flexible ferroelectric organic crystals Application Notes You may need the JB Weld to seal the bore with wires. Ceramic is a very brittle material, it could only be applied with very little pressure on the plate Warranty Please note that this is a consumable item with no warranty coverage.

Components in standard package
  • One four-bore tube support allows electrical wires to pass through and connect the testing sample.
  • Top & bottom pressing plates ensure proper metal contacts between the sample and electrical wires.
  • Ceramic tightening screw&nuts for holding the two plates together.
Note: Electrical wires will not be included in the sale.
Purity > 99.8%
Working Temperature Optional:
  • 1200°C
  • 1500°C
  • 1700 °C max.
Dimensions
  • Sample Placement Area: 27mm W x18mm L Max.
  • Ceramic Pressing Plate: 40mm W x 36mm L x 3mm Thick
  • Ceramic Supporting Rod: 10mm O.D x 500mm L; 4 bores, 3mm I.D
  • Ceramic Screw length: around 25 mm.
Instruction Video
Related Article
Application Notes
  • You may need the JB Weld to seal the bore with wires.
  • Ceramic is a very brittle material, it could only be applied with very little pressure on the plate
Warranty Please note that this is a consumable item with no warranty coverage.
